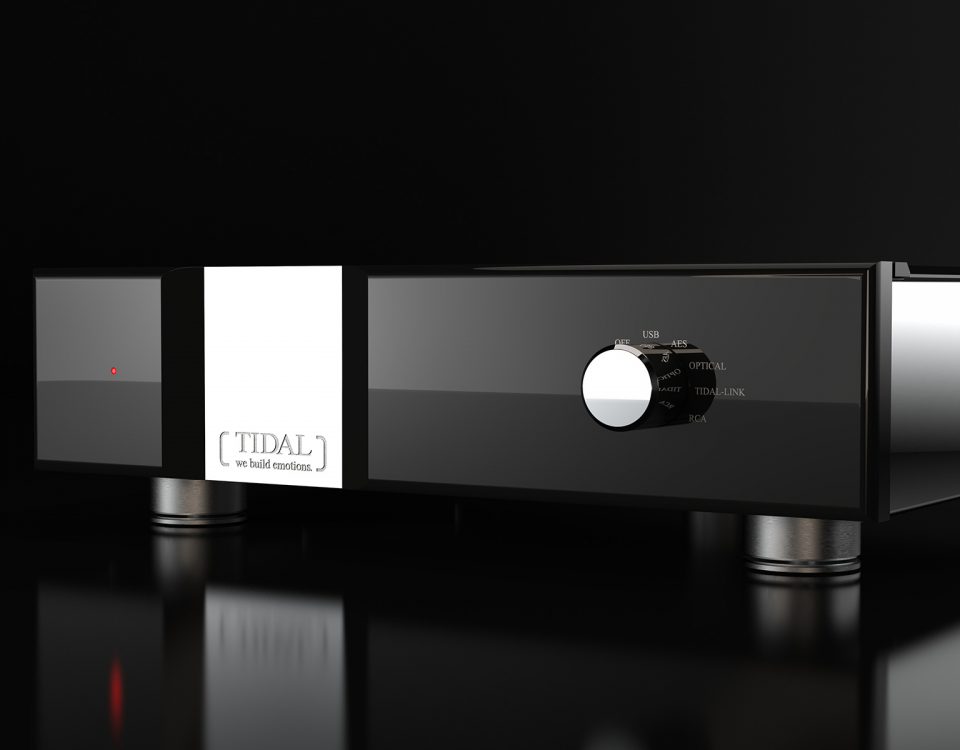

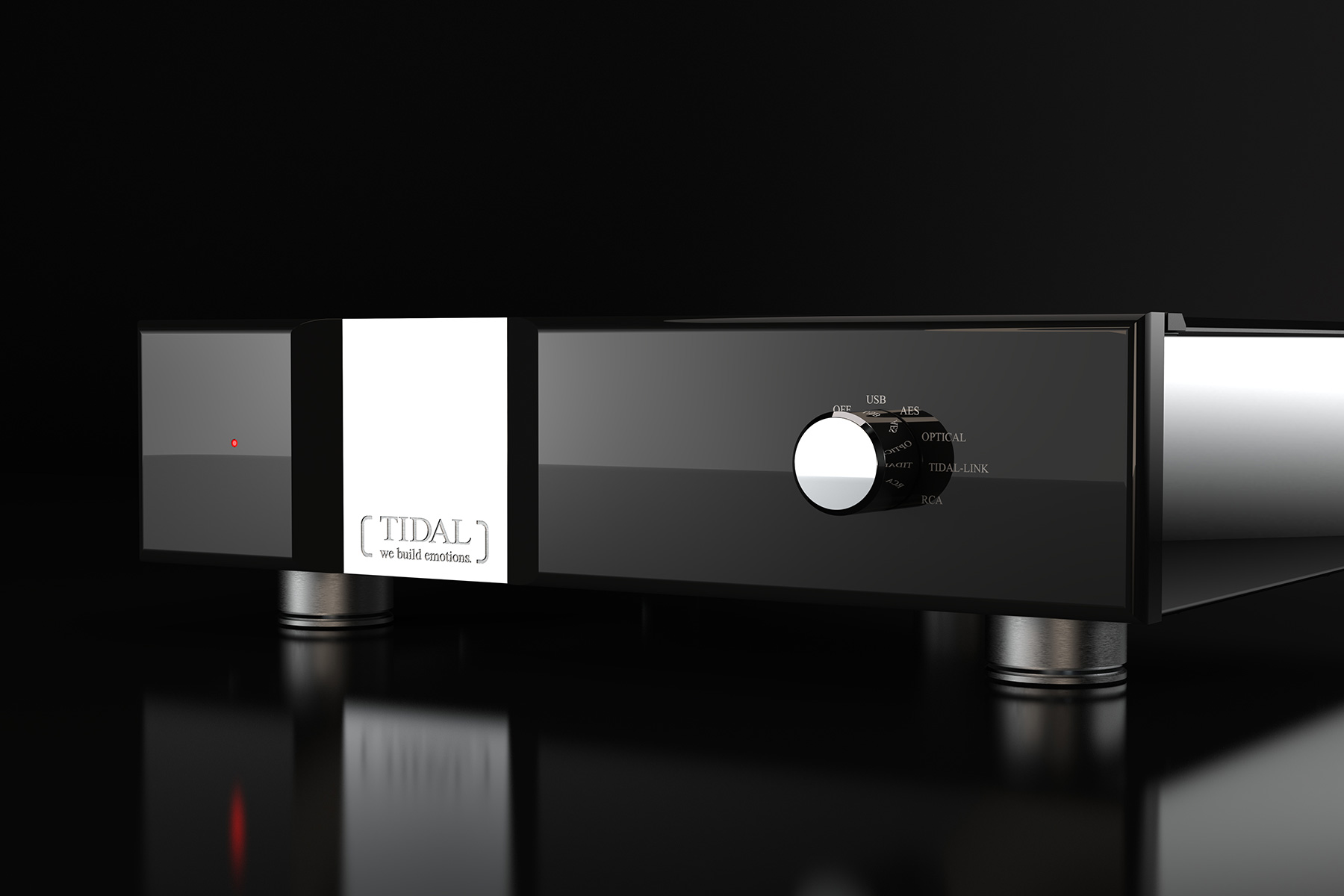

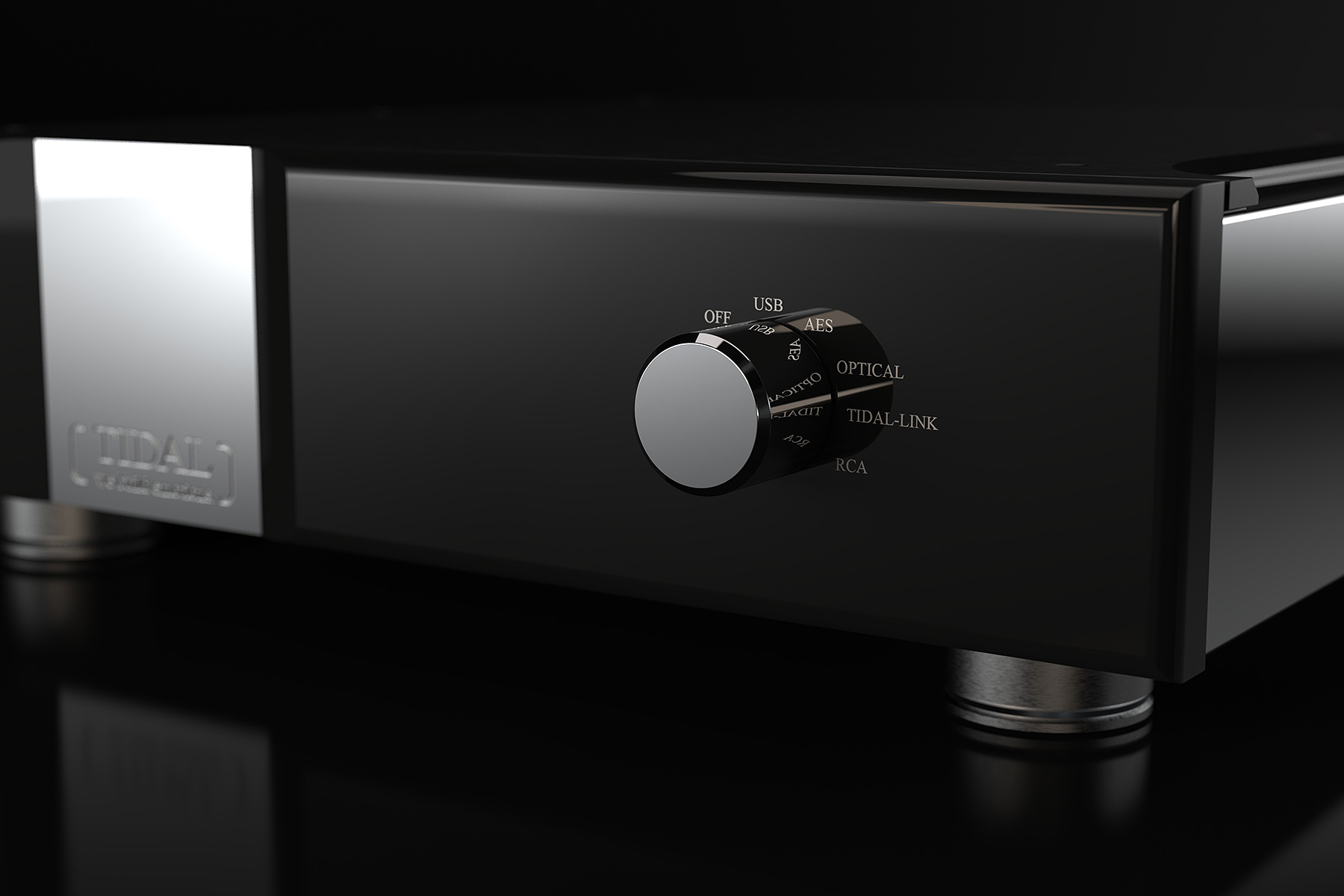

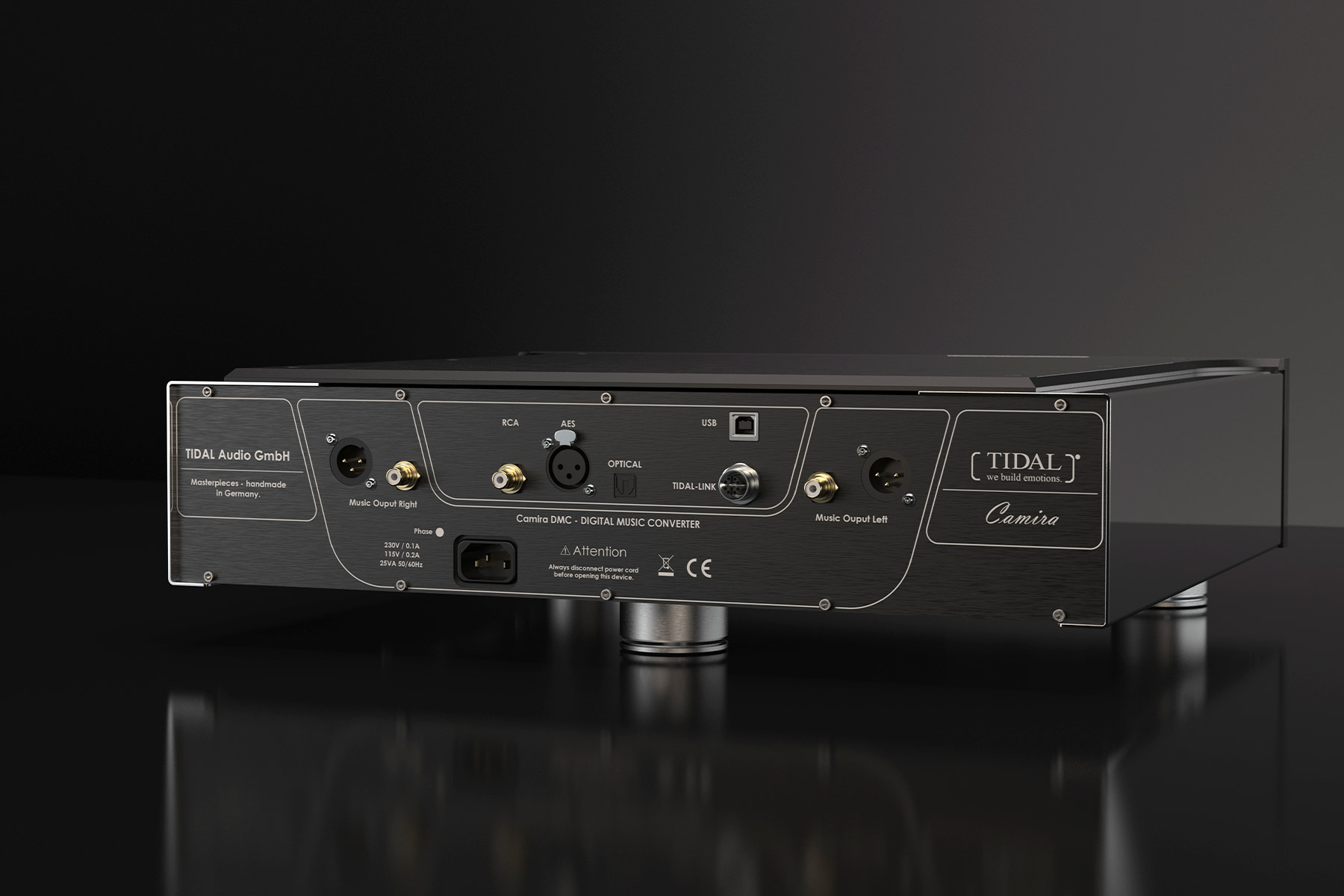

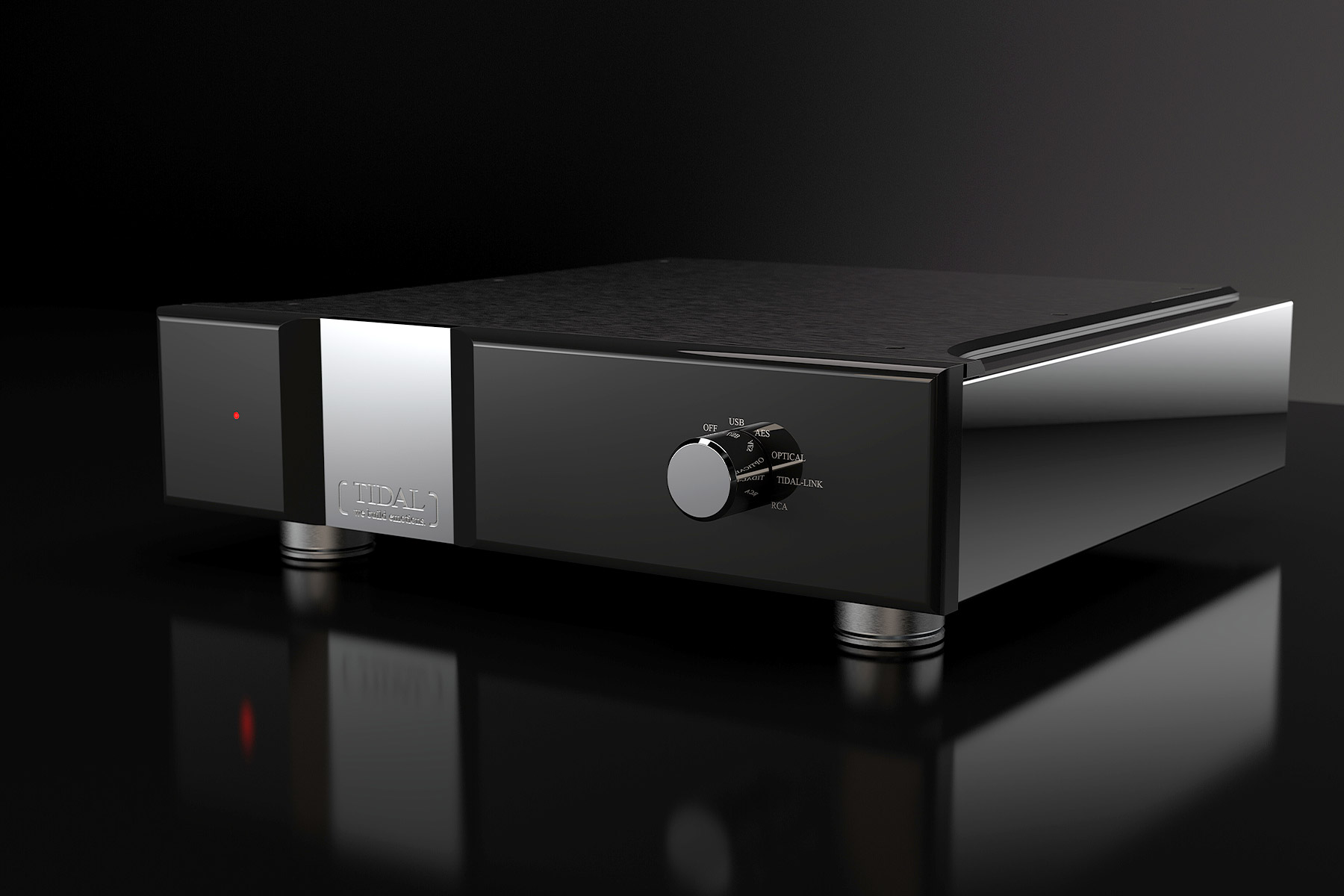

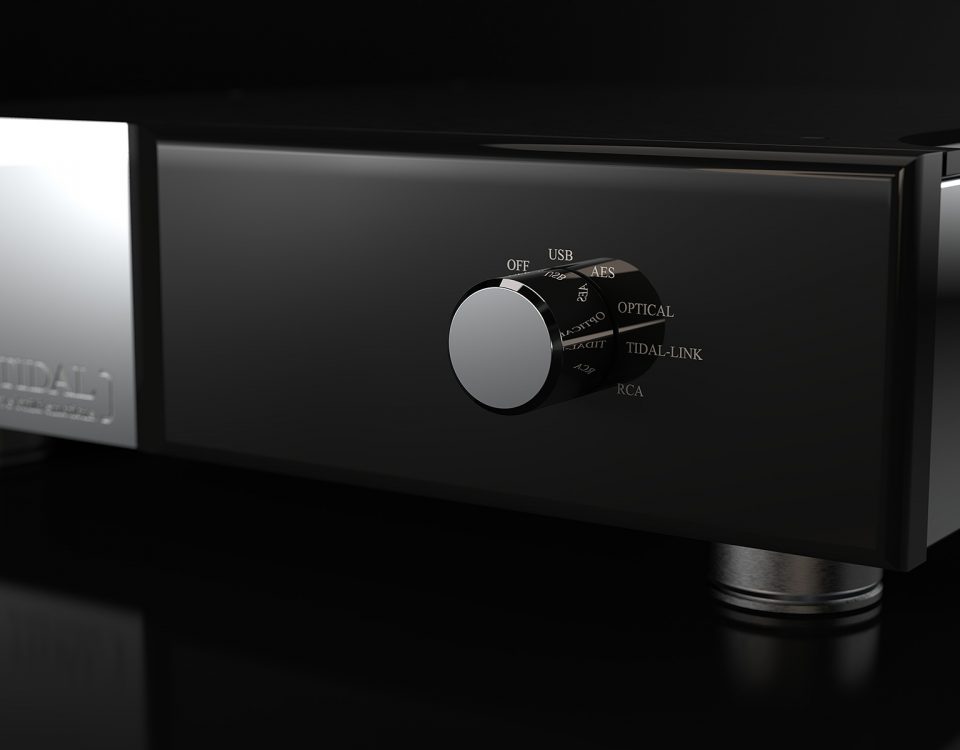

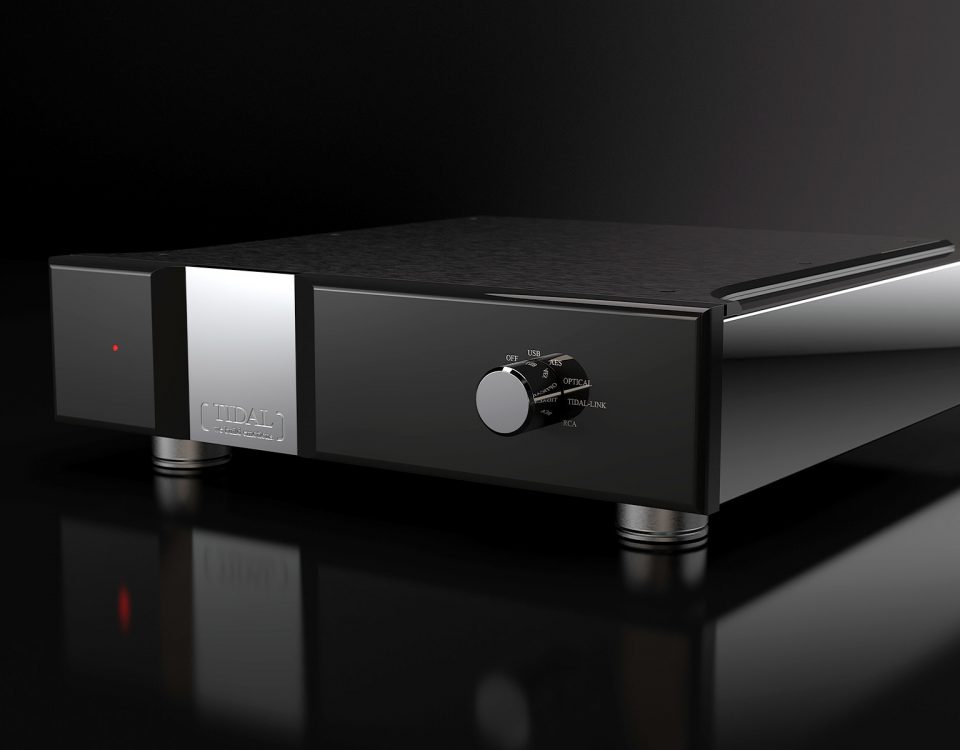

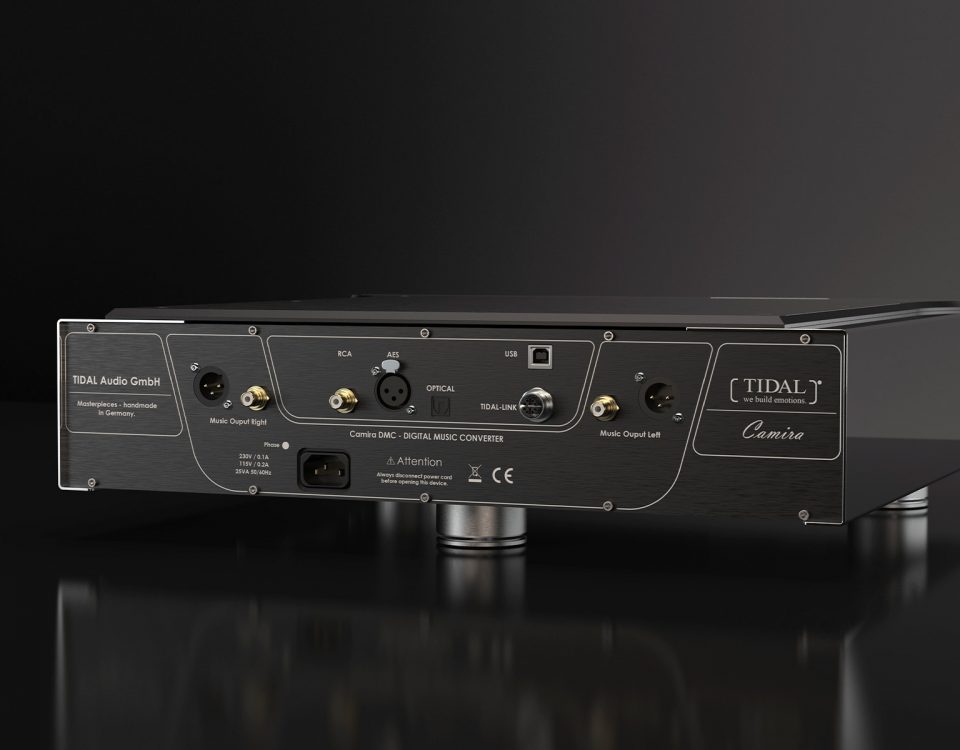

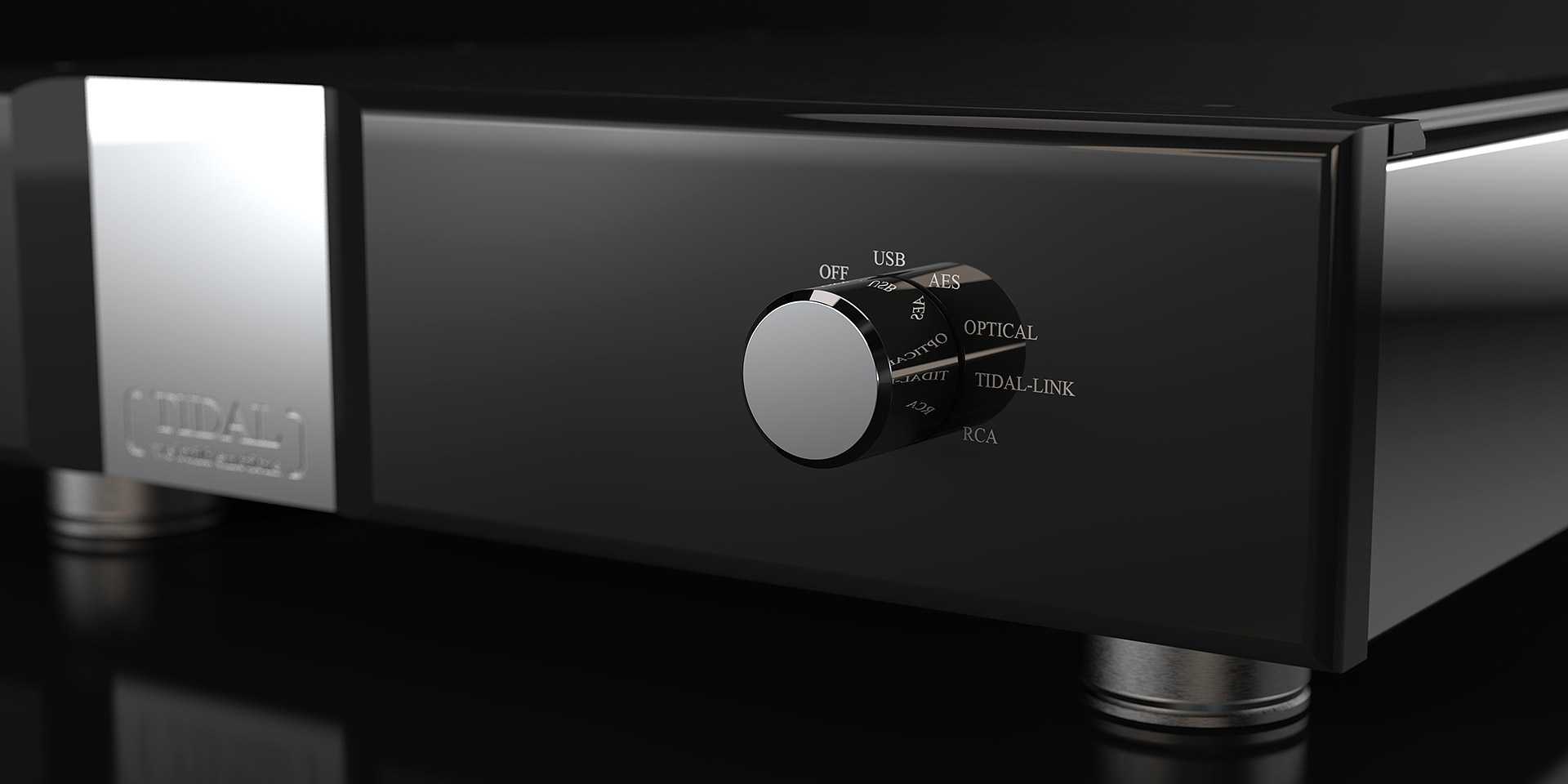

TIDAL CAMIRA



The Camira is the reference  digital-analog-converter from TIDAL. Designed without compromises it offers a true PCM digital to analog output conversion. The whole device was designed to perform with a standard which is existing since decades: digital signals from a PCM source, simply just as from any CD-drive or as FLAC and WAV files, also in high resolution from music playback devices, no matter from SSD/HDD or directly streamed.

Timeless performance from any of those sources and formats, from what music listeners really have at home. Such as some of the best turntables ever designed are 'out of the race', the concept of Camira is the very same in approach. It is built for one purpose only, without compromising it with diversity for formats which do not matter in reality - the TIDAL Camira is a pure PCM-to-music machine.

DETAILS

CAMIRA SPECIALTIES

Please discover here soon the details in words and pictures of the CAMIRA and CAMIRA LC:

August 2016.

SPECIFICATIONS



  • pure discrete designed DAC / DAC with line level pre amplifier and volume control
  • concept: fully balanced minimal path topology dual mono pre amplifier with fully regulated external power supply and 3 balanced phono inputs in an external deck
  • true balanced concept without any sound-changing inverted signal generation
  • 3 separated cabinets for power supply (POWERDECK), line stage and phono control deck (LINEDECK) and digital  input deck (DACDECK)
  • completely regulated power supply with galvanic separation and filtering for "left", "right" and "control" for each channel of the LINEDECK and PHONODECK, regulation boards out housed from the power supply directly at the amplifier boards
  • completely separated power supplies for level control and isolated DOT-matrix display with level indicator ("min", "1 - 31", "max", "mute", "on", "1:1") with time delayed turn-off with "on"-indicator behind a mirror inside of the chrome plate
  • 2 separated power cord inputs with different filtering for "Analog" and "Control"3 x balanced input, 3 x unbalanced input incl. 1 x tape-loop, 3 x balanced phono input, 2 x balanced output, parallel volume controlled
  • unique level adjustment: only 1 high precision resistor in signal path for level adjustment, controlled by an electronically and mechanically isolated motor driven ALPS potentiometer-A/D-converter-unit and 256 reed-relay, remote control for volume and intelligent soft mute
  • one input can be configured as 1:1 direct mode for an external surround processor or as classical high level input
  • 3-stack device with resonance controlled cylinders inside of the cabinets made out of Delrin and isolator feet to place it 'plug & play' on top of each other 6 x remote output for up to 3 pair Impact Monobloc, intelligent soft start

    DAC-deck:

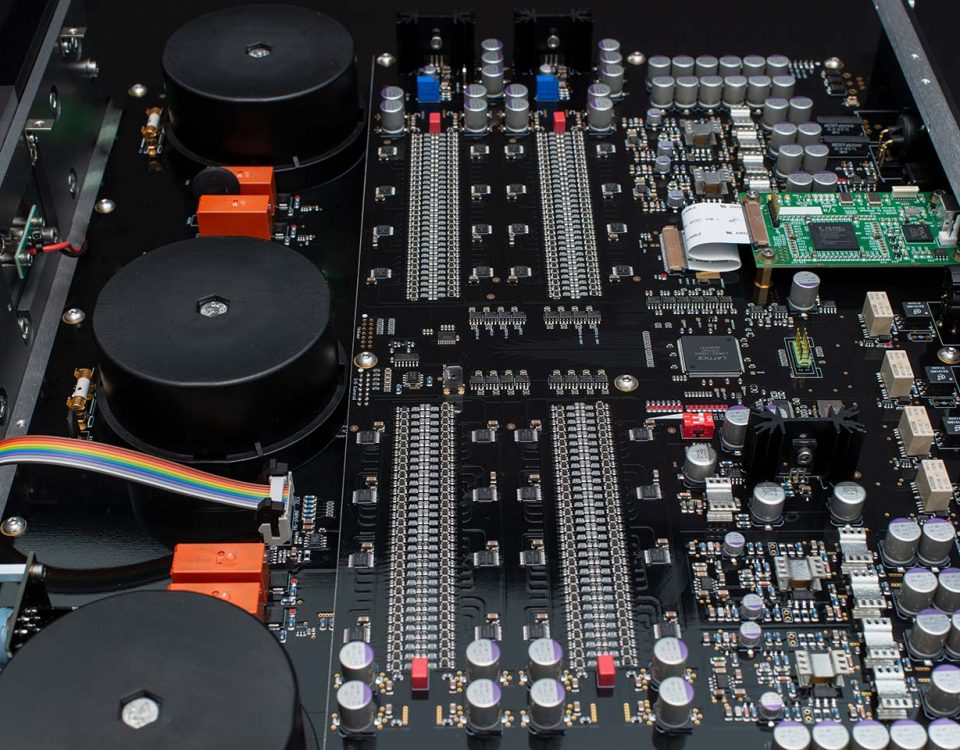

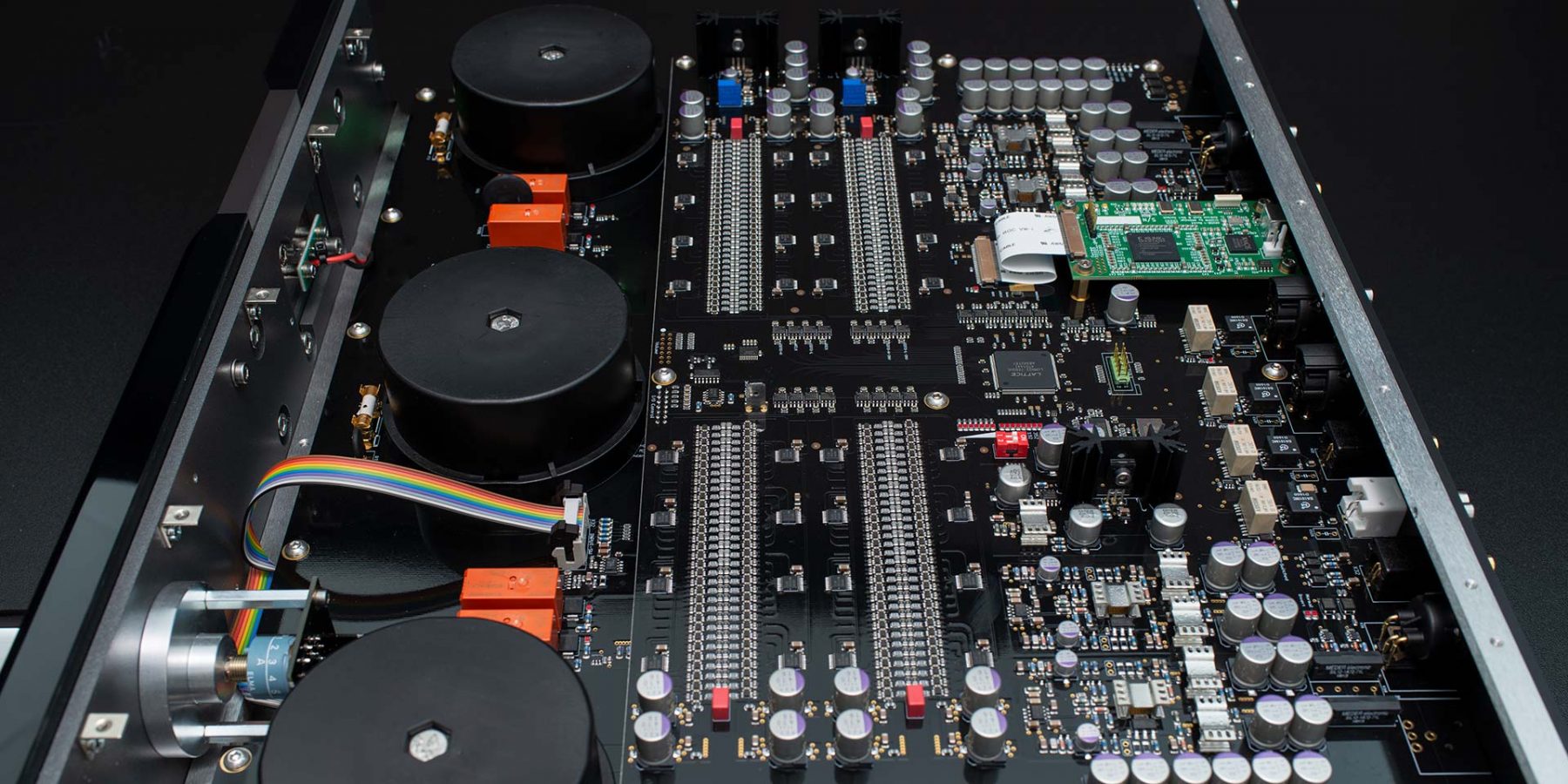

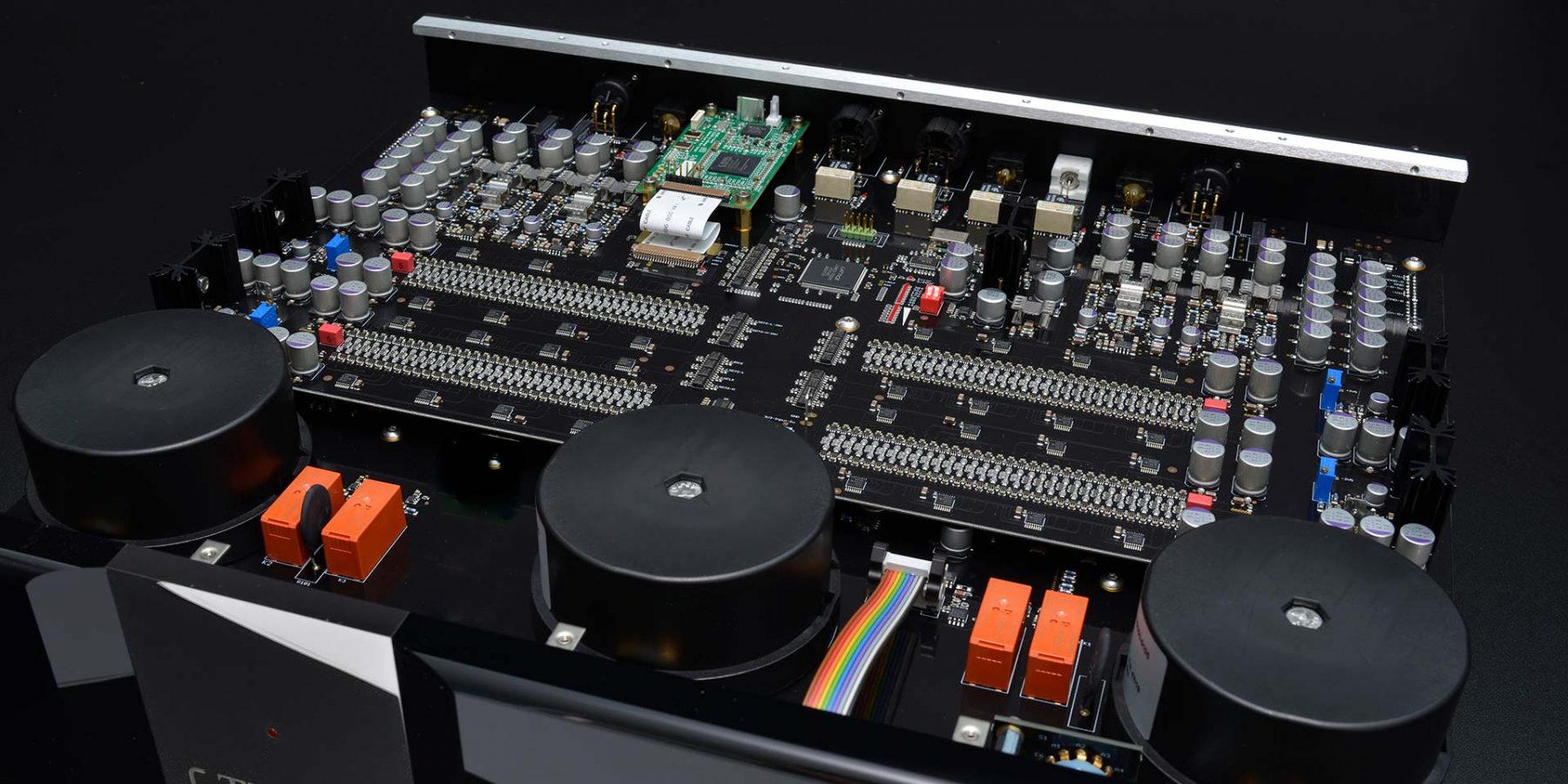

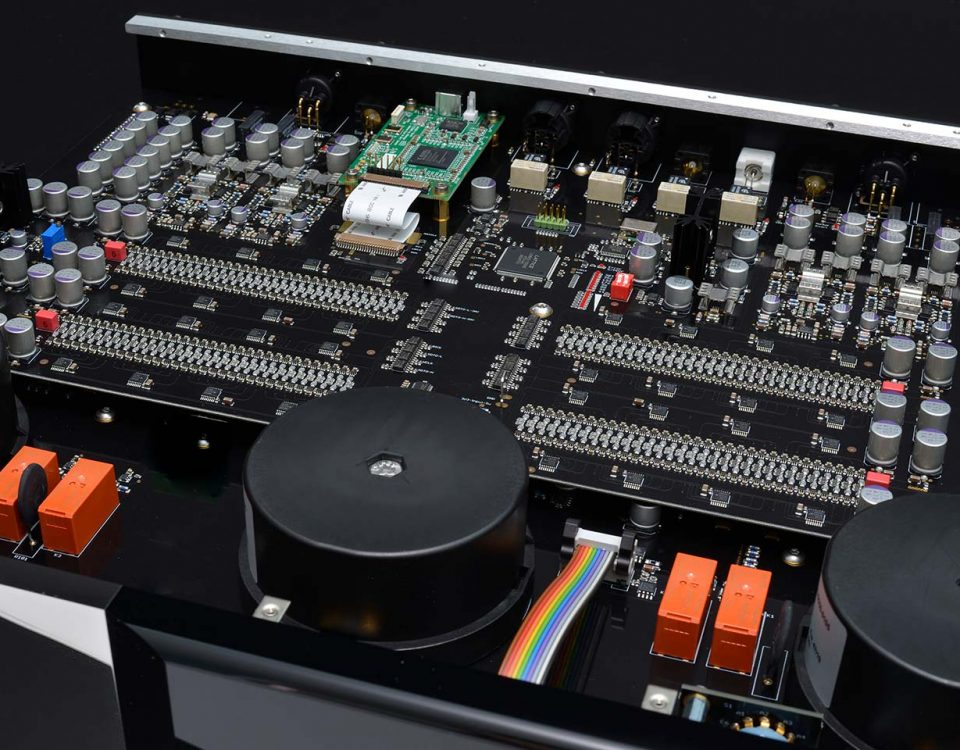

  • discrete ladder DAC with re-clock system and non-oversampling technology
  • Dimensions: 44cm x 13cm x 39cm / 17.3" x 5.1" x 15.3" (width x height x length)
  • Weight: 24 lbs. / 11 kg

    Linedeck:
  • 6 isolated amplifier modules
  • separated discrete balanced output modules without sound-limited transformers
  • 8 volume control boards with 256 relay and direct resistor access in the signal way without cascades, digitally controlled with fully analogue switching and logarithmic resolution
  • completely galvanic separated ground between "left, "right" and "control"
  • 4 linear regulated power supplies with 40 x 3.300 µF, total buffer- and filtering capacity 132.00 µF
  • Voltage Gain: 12dB (at Line inputs) or 23 dB (at PHONODECK input)
  • Gain Bandwidth: 1Hz - 350kHz (-3dB)
  • Distortion: < 0.001%
  • Noise: > 100dB (0.5V output voltage)
  • Input Impedance: 10k ohm
  • Output Impedance: 50 / 150 ohm
  • Dimensions: 44cm x 13cm x 39cm / 17.3" x 5.1" x 15.3" (width x height x length)
  • Weight: 24 lbs. / 11 kg

    Powerdeck:
  • regulated power supply with 6 transformers for 12 different voltage outputs with 84 x 3.300 µF, total buffer- and filtering capacity 277.200 µF
  • 6 remote output for time delayed sequential power on/off control of up to 6 TIDAL "Impact Monobloc" and TIDAL "LPX"


  • Power consumption: 25W (PHONODECK and LINEDECK are plugged in)
  • Dimensions: 44cm x 13cm x 39cm / 17.3" x 5.1" x 15.3" (width x height x length)
  • Weight: 30 lbs. / 14 kg
